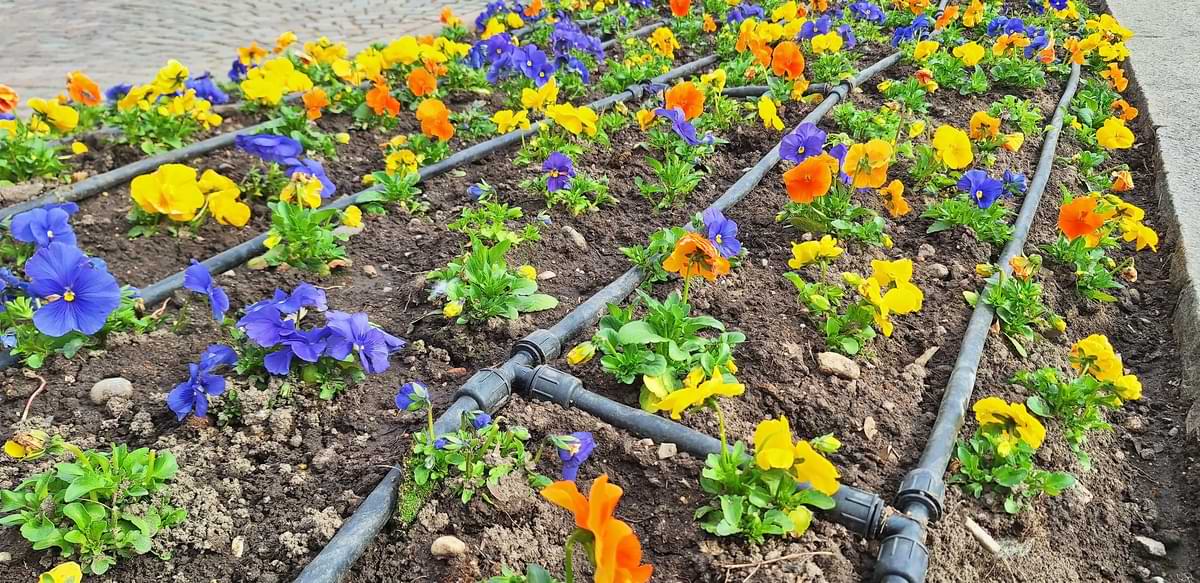

Drip Irrigation System Basics

Table Of Contents

What Is Drip Tubing

Benefits Of Drip Irrigation

When You Should Use Drip Irrigation

What Sizes Of Polyethylene Drip Tubing Are Available?

What Types Of Drip Tubing are Available?

How Do I Determine What Type Of Drip Tubing Irrigation To Use?

Components Used In A Drip Tubing Irrigation System

Keep Soil In Mind

Rules Of The Rows

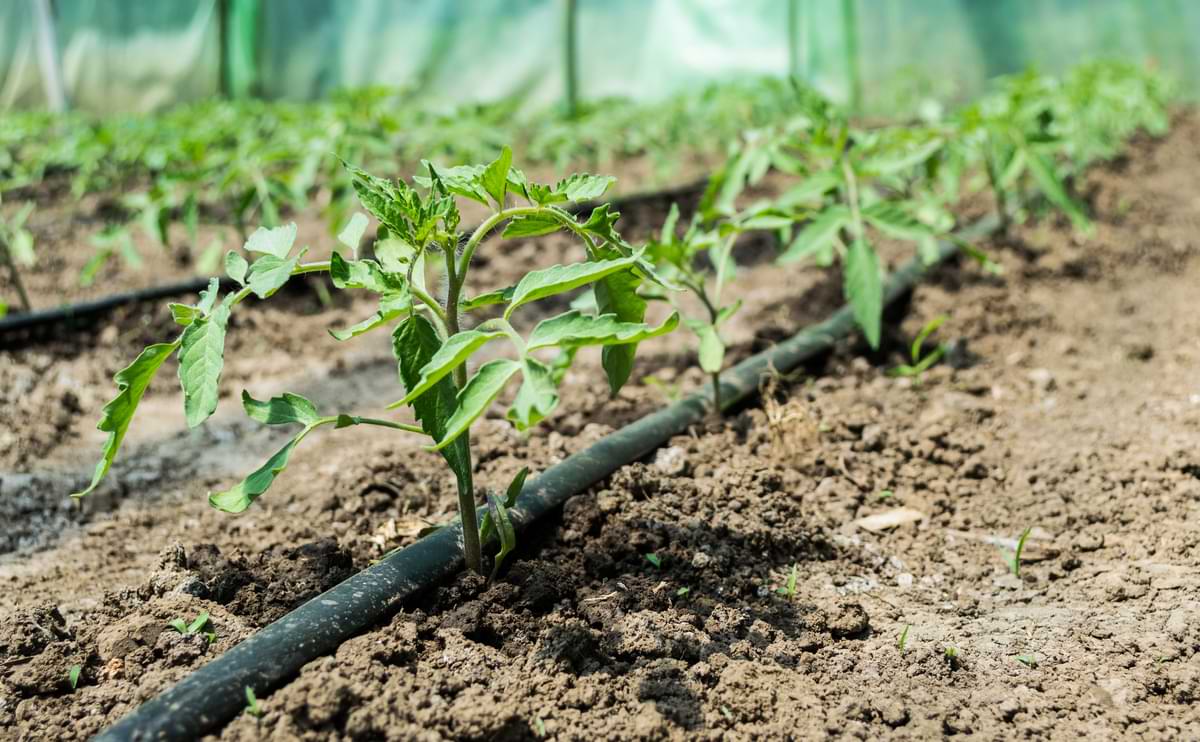

What Is Drip Tubing?

Drip tubing for irrigation systems is used in the delivery of water directly to the roots of plants. Specifically, drip tubing is made from polyethylene and has emitters that are placed at intervals along the tube. These emitters correspond with the placement of each plant. This ensures that water is delivered directly to each plant’s root zone.

Drip Tubing

Irrigating in this manner is not only very precise and efficient, but it also conserves water because of the low flow rate that is required. In arid locations, drip irrigation is an essential method of maximizing water usage and has been a standard for centuries.

Drip Irrigation: An Ancient Practice

In arid locations, drip irrigation is an essential method of maximizing water usage and has been a standard for centuries. There is even evidence that ancient civilizations used clay pots that were buried in the ground as a primitive method of drip irrigation. The pots would be buried near plants and filled with water. Over time, water would slowly seep from the pots and into the soil. Each plant received a constant and direct source of water.

This ensures that water is delivered directly to each plant’s root zone. Irrigating in this way is not only very precise and efficient, but it also conserves water because of the low flow rate that is required.

Benefits Of Drip Irrigation

Drip irrigation, via the use of quality polyethylene drip tubing, is both an economical and efficient way to irrigate most forms of plant life. Due to the fact that this method of irrigation has an efficiency rate of over 90%, this is especially true in areas where water is scarce. Because of the low flow rate and direct application to the roots of the plant, using drip tubing for irrigation also reduces evaporation and runoff. Drip irrigation is scalable and can be used for both commercial and residential applications.

Drip irrigation also limits disease because the tubing is delivering water directly to the root zone of a plant. By minimizing water contact on the stems, leaves, and fruit of a plant, waterborne disease is virtually eliminated. Using drip tubing for irrigation also keeps the rows between plants dry. This allows for easier access to the plant and reduces weed growth. Other benefits include less leaching of nutrients and water under the root zone and increased success over rough terrain.

When You Should Use Drip Irrigation

Drip tubing for irrigation purposes can provide benefits to nearly any type of agricultural endeavor.

If Water Usage Is Limited

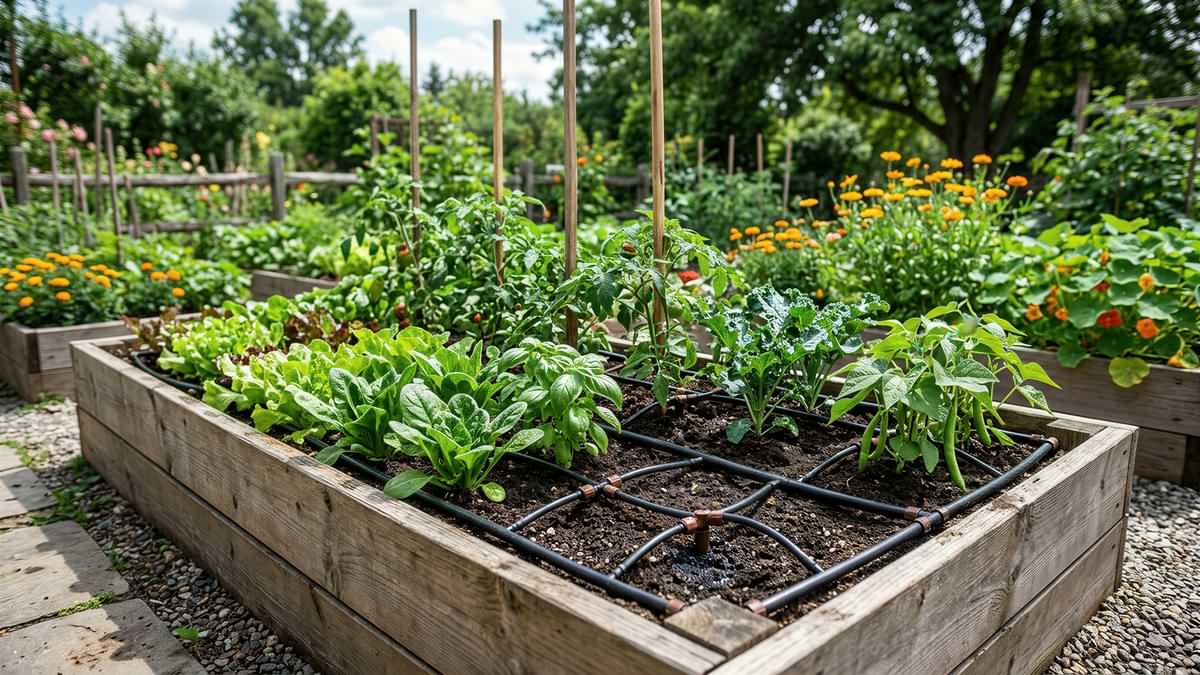

If you are a homeowner, drip irrigation provides an efficient way to water a multitude of different plant life from perennials in a landscaped flower garden to a backyard garden filled with fruits and vegetables. Drip irrigation is especially useful in situations where water usage may be limited or in locations where water is scarce. Because of its flexibility, drip tubing can also be used for irrigating irregularly shaped or narrow areas. Drip tubing can be shaped to the contours of the rows of plants or landscaped areas.

If There Is A Drought

Drip irrigation is also very useful during times of drought. In many cases, because of its efficiency, it may not be subject to water restrictions that are imposed during these times. Using drip tubing for irrigation is also considered a very “green” irrigation solution and as such, it is an excellent way to conserve and even recycle water.

What Sizes Of Polyethylene Drip Tubing Are Available?

Now that you’ve decided to embark on a journey that involves drip irrigation, it’s a good idea to take some time to learn a bit about what you’ll need in order to develop your drip irrigation system.

If you are a homeowner who is developing your own drip irrigation system, it is important to understand the differences in the sizes of drip tubing. It’s especially easy to become confused about the differences in 1/2-inch drip tubing, and this can lead to problems with buying the correct size of fittings. Drip tubing irrigation and polyethylene tubing irrigation both come in various styles and sizes ranging from 1/8-inch to 1.5-inches or even larger. There are differences between the OD (Outside Diameter) and ID (Inside Diameter). These differences are shown in this list of the most common sizes of drip tubing.

Polyethylene Tubing

  •  1/8-inch – .125″ ID x .187″ OD
  •  1/4-inch – .170″ ID x .250″ OD
  •  3/8-inch – .375″ ID x .500″ O*

1/2-inch polyethylene tubing is available in three different configurations:

  • .520″ ID x .620″ OD-  1/2-inch
  • .600″ ID x .700″ OD- 1/2-inch
  • .615″ ID x .710″ OD-  1/2-inch
  • * 3/4-inch – .820″ ID x .940″ OD
  • * 1-inch – 1.060″ ID x 1.200″ OD

Drip Tubing

  •  1/4-inch – (5 mm) with .170″ ID x .240″ OD

*1/2-inch drip tubing is available in two different configurations:

  •  1/2″ – .550″ ID x .640″ OD
  •  1/2″ – .570″ ID x .670″ OD

Remember, with 1/2″-inch drip tubing irrigation you need to have the ID and OD that corresponds correctly with the size of fittings that you will use. If these sizes do not match precisely, there can be a wide variety of problems. Leaks, blow-outs, or stripped threads on fittings occur as a result. Drip tubing is normally sold in lengths of 100, 500, or 1,000 feet. It is black in color and has a high resistance to sunlight. In normal sunlight situations, drip tubing will last for about 30 years.

  •  1/4-inch – .170″ ID x .250″ OD
  •  3/8-inch – .375″ ID x .500″ OD

* 1/2-inch polyethylene tubing is available in three different configurations:

  • .520″ ID x .620″ OD-  1/2-inch
  •  1/2-inch – .600″ ID x .700″ OD
  •  1/2-inch – .615″ ID x .710″ OD

3/4-inch – .820″ ID x .940″ OD

* 1-inch – 1.060″ ID x 1.200″ OD Drip Tubing:

  • 1/4-inch – (5mm) with .170″ ID x .240″ OD

What Types of Drip Tubing are Available?

There are several different types of drip tubing that are available for a drip irrigation system.

Emitter Tubing

For most drip irrigation systems, emitter tubing is the standard. This tubing allows for spot placement of water. In the case of factory-made emitter tubing, emitters are placed at even distances along the length of the tube. This type of tubing is a perfect choice for rows of evenly spaced plants. In custom systems designed for a landscaped area, emitters are manually placed along the tube to correspond with the placement of various plants.

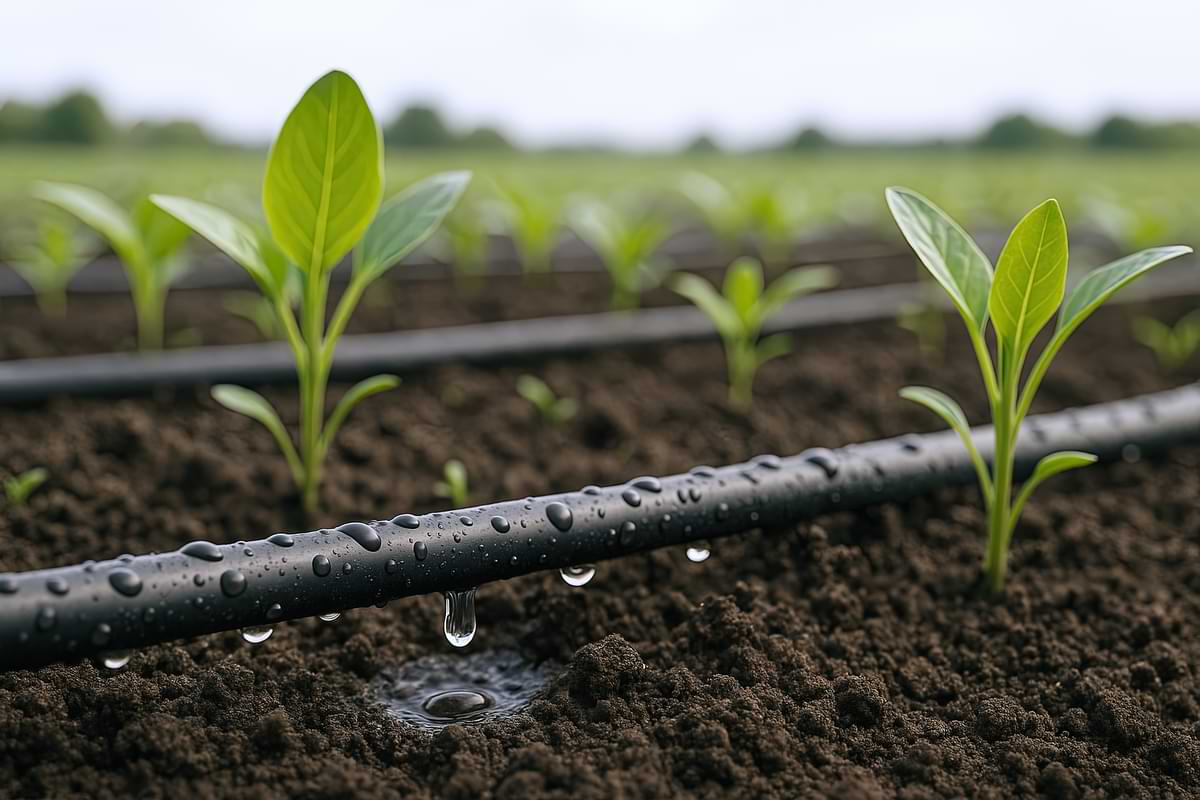

1/4″ Distribution Tubing & 1/2″ Distribution Tubing – This tubing is generally connected to the main water supply and brings the water to the 1/4-inch distribution tubing, soaker tubing, or emitter tubing.

1/4″Distribution Tubing– This tubing connects the 1/2-inch tubing to various types of emitters such as misters, emitters, and sprinklers.

Soaker Hoses Or Tubing

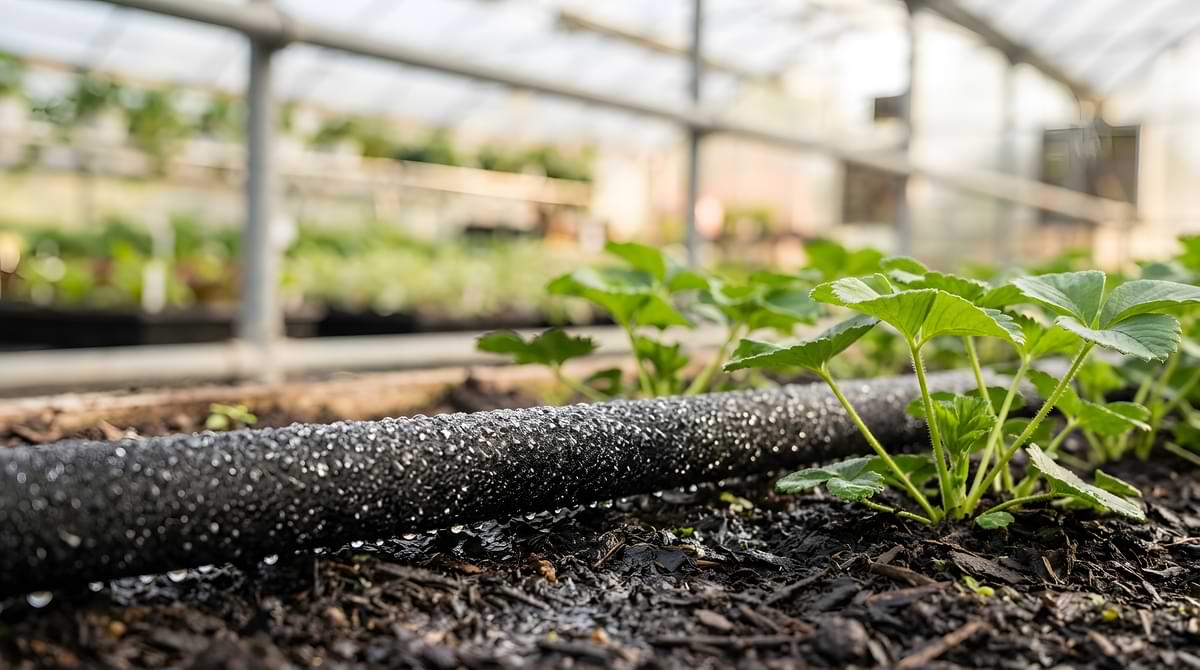

These types of emitters are porous hoses that can be connected directly to an outside faucet, rain barrel, or garden hose. This type of hose can be laid around your different plants and water will seep from the walls of the hose and into the ground around it.

The difference between the soaker hose and a drip line is that the delivery of water is much less accurate. You could compare a soaker hose to sweating because the water comes out along the entire length of the hose.

Soaker Tape Or Drip Tape

This emitter is similar to a soaker hose. It is made of either porous material or has hundreds of tiny holes along its entire length. The main difference is that drip tape is much thinner and in many cases will only last for one season. This tape can be used above or below ground and is very good for delivering water to wider areas that might need it. One example is within an area that has dense foliage.

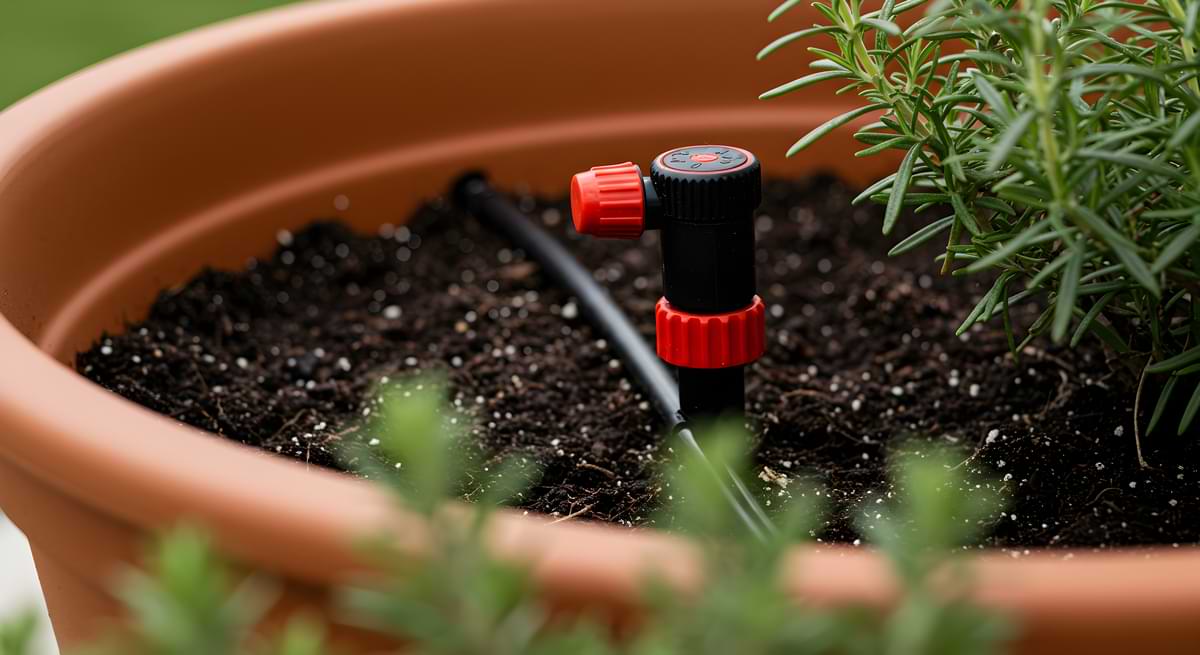

Micro-Tubing

Another useful component for irrigation systems. This type of tubing generally comes in 1/8″ and 1/4″ sizes and it can be used as the main and sub-lateral tubing for a drip irrigation system. It is also used to connect emitters. Micro tubing can generally handle up to 15gph.

How Do I Determine What Type Of Drip Tubing Irrigation To Use?

A simple answer to this question is that it will vary depending on what your needs are. In the case that the intended use of the drip irrigation system is for rows of crops in a garden or trees in an orchard, factory-made tubing with its evenly spaced emitters is a perfect choice. If, however, you are designing a system for a landscaped yard that has plants at various intervals throughout the entire yard, emitter tubing that requires manual placement of emitters is the correct choice.

Say you decide to landscape your yard in a different manner each year. The soaker tubing may be a good choice since it is something that requires annual replacement. The size of your irrigation zones will also factor into this equation. One of the most important things you should do is draw out a plan and then use string to determine the proper lengths of the tubing you’ll need.

Components Used In A Drip Tubing Irrigation System

In a nutshell, there are several essential components in a drip irrigation system. Each system will require the main waterline, control valves, pressure reducer, backflow prevention, pressure regulator, filter, various tubing adapters and fittings, air vents, drip tubing, emitters, filters, and an end cap or flush valve.

Main Water Line

The main water line is the beginning of a system. In the case of a landscaped area around a residence, the mainline is usually alongside the house and extends from the foundation or outside wall of the home. The main water line can also be run underground to a central point within your irrigation layout.

Control Valve

The control valve monitors the flow of the water from the main water line or throughout the various areas of the irrigation system. Control valves may be operated manually or, with a bit more expense, may be automatic. Depending on the type of system that is installed, there may be one or more control valves. Since many systems operate with maximum efficiency at lower water pressures, a pressure regulator may be required to help lower the water pressure coming from the main water line outside of a home.

Pressure Vacuum Breaker

Emitters sit directly on top of soil or beneath the soil. If water that has been emitted into the soil seeps back into the drip line and up to the mainline, it may very well contaminate your entire water supply. In order to prevent water contamination in your main water supply, it is of the utmost importance that your drip irrigation system has a backflow suppressor.

Filters

A filter with a 150-mesh or 200-mesh screen will help prevent the buildup of different minerals and particulates in the emitters. Filters will also protect the valves on your drip irrigation system.

Drip Tubing Or Drip Line

This is the tubing that has emitters installed on it. If you are using factory-pre-installed emitters, this tubing will have the emitters placed at the same intervals along the length of the tubing. Manually installed emitters can be placed at varying intervals.

Drip Irrigation Fittings And Adapters

If your irrigation needs are focused on plants that are spaced at regular intervals, a drip line is an easy choice. This type of drip tubing comes in multiple lengths from 50 feet to 1,000 feet. In most cases drip lines can be found that have emitters placed at 6-inch, 9-inch, 12-inch, 18-inch, 24-inch, 36-inch, or 48-inch intervals. In some cases, depending upon the type of application, drip lines may come with even larger intervals.

Air Vent

In order to keep air out of the emitters during the times that the system is shut down, an air vent should be installed at the drip tube’s highest point.

Drip Tube Fittings And Adapters

This equipment includes tees, couplings, adapters, and ells. These are the components that are used to connect the drip tubes to each other and to control valves or the main waterline. It is important to note that the fittings should be the correct size for the tubing you use. In many cases, using the incorrect size fittings will result in a blowout.

End Caps And Flush Valves

In order to keep the water from just flowing out of the end of the drip tubing, it is necessary to have a flush valve or end cap. A flush valve is simply a valve that is placed at the end of the drip tubing. It is kept in the off position until the tubing needs to be flushed (generally once per year). An end cap is exactly what it sounds like: a cap that is screwed onto the end of the drip tubing.

Drip Irrigation Emitters

Within the list of equipment needed for a drip irrigation system, we’ve saved emitters for last. Drip Emitters are one of the most important components of the drip irrigation system. They are basically small plastic valves that are installed along the length of the drip tube.

The sole purpose of an emitter is to keep a continuous and uniform flow of water near the root zone of the plant. There are two primary categories of emitters: pressure compensating emitters and turbulent flow emitters.

Pressure Compensating Emitters

are used in situations where there is a disparity in elevation of greater than five feet. Turbulent flow emitters, also known as tortuous-path emitters, are used when the irrigation area is level. Keep in mind that all emitters provide some type of pressure compensation.

Pressure Compensation Emitters

A pressure compensation emitter will keep the water’s flow rate constant regardless of the water pressure. For instance, a pressure compensation emitter should keep water flowing at the same rate whether it is at a pressure of 1.0 bar (15 PSI) or 3.0 bars (45 PSI). Strictly speaking, the main benefit of using a pressure-compensating emitter is that if you have an area that is hilly (with an elevation of over 5 feet) then pressure-compensating emitters will maintain the water’s flow rate throughout the system.

  • Pressure-compensating emitters should not be used when your water pressure is very low. As you can imagine, the flow rate of a pre-installed emitter is one of the most important parts of the drip irrigation equation.

Emitter flow rates vary quite a lot, however, the most common flow rates that are used for home irrigation systems are as follows:

  • 2.0 liters per hour (1/2 gallon per hour)
  • 4.0 liters per hour (1 gallon per hour)
  • 8.0 liters per hour (2 gallons per hour)

Keep Soil Type In Mind

When selecting the type of emitter, one item to be mindful of is the type of soil you have. The purpose of drip irrigation is to supply water directly to the root zone of a plant. In order to do this, the water needs to be absorbed by the soil immediately or it will evaporate or there will be a run-off.

If your flow rate is too high, you’ll end up with excess water around the plant that either runs off or evaporates. Specifically, the higher the density of your soil, the slower your flow rate needs to be. Soil that is high in clay, for instance, is very dense and tightly packed and absorption is very slow. From a practical standpoint, if you have loose, sandy soil, you should consider emitters that have higher flow rates because the absorption rate will be much faster.

Rules Of The Rows

When constructing your drip irrigation system, there are a few things to consider. You might consider these to be the rules of the rows. The first thing to consider is the length of your mainlines and lateral lines.

Regardless of anything else you might learn about drip irrigation, the number one rule you have to consider is that the laws of physics always apply. This becomes incredibly important when considering the length of your mainlines and lateral lines. As a rule, the overall length of both cannot exceed 120 meters (400 feet).

Standard Guidelines

Typical sizes for mainline and lateral lines can vary, but the following guidelines are relatively standard across all drip irrigation systems.

  1. Flow Range in GPM
  2. Mainline Pipe Size
  3. Lateral Line Size
  • 0-31/2″ 1/2″
  • 0-31/2″ 1/2″
  • 3-63/4″ 1/2″
  • 6-101″ 3/4″
  • 10-201 1/4″
  • 1″
  • 20-301 1/2″
  • 1 1/4″

Drip Irrigation Length

Drip tube length is another consideration to factor into the overall design of the irrigation system. The overall length of the drip tube cannot be more than 60 meters (200 feet) from the water’s point of entry to the end of each tube.

When designing a system, the designer needs to take several things into consideration. Total coverage area, types of plants to be irrigated, and type of soil are the major requirements that have been determined you can select the proper hardware to ensure proper flow rates.

For more information on drip irrigation systems or drip irrigation products, contact the Customer Service team at Sprinkler Warehouse or stop by our showroom today!
